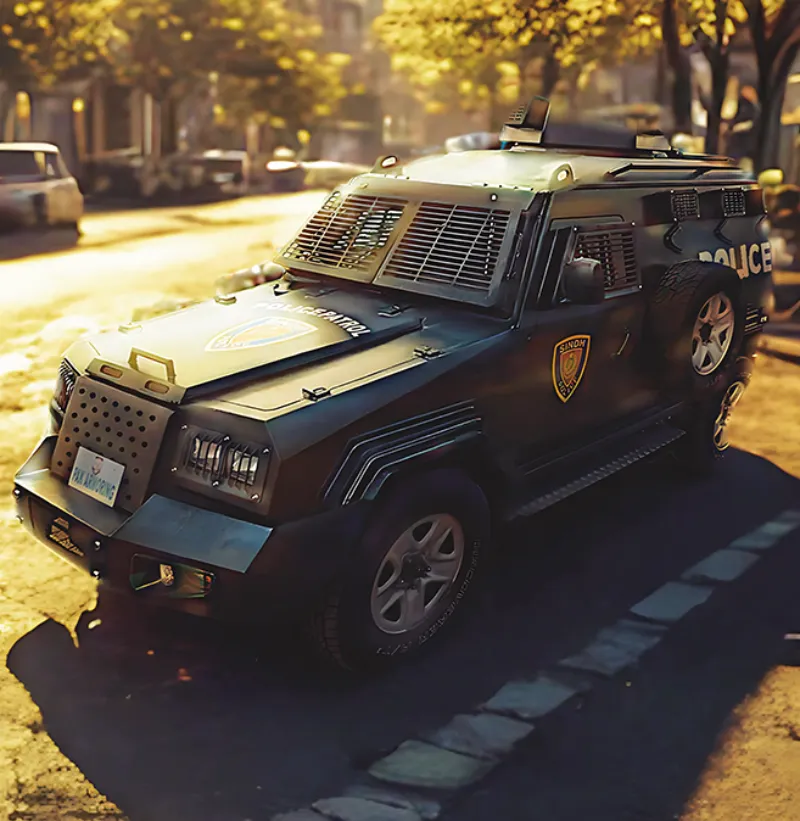

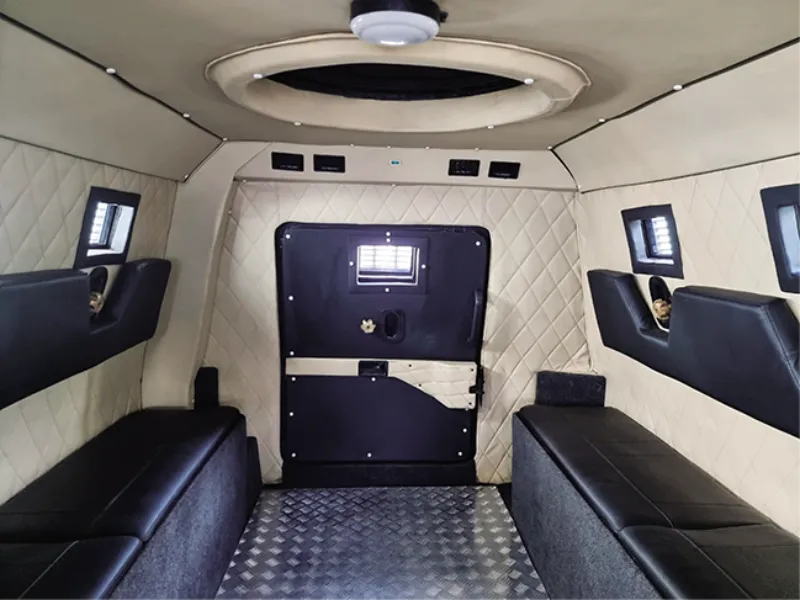

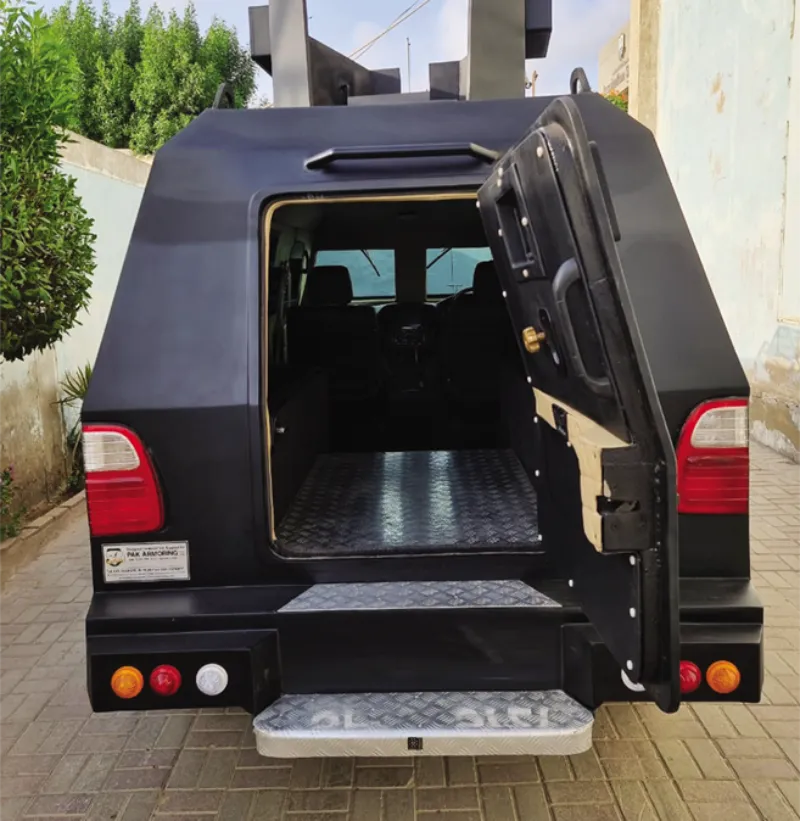

The SAQR offers an innovative solution that delivers highest level protection and despite it’s heavy armor,SAQR is designed with ergonomic seating, climate control, and maneuverability to ensure that personnel can operate efficiently under challenging conditions, with the cost in mind, it is built on a heavy duty chassis of Toyota Land Cruiser 79 series, powered by 304 horsepower, 4.5L V8 Diesel engine, 6 speed automatic/Manual gear transmission.
The SAQR LAPV relies upon 10mm to 14mm thick armor plates to provide CEN B7/ SATANG II level 2b protection from five sides. The vehicle has a high ground clearance which increases protection from mine and IED blasts, it can withstand up to 6kg of explosive force under its hull.
This chart is designed to simplify the understanding of protection levels set by the European Committee for Standardization. It outlines the CEN EN 1063 and EN 1522/1523 ballistic standards for bullet-resistant material performance.
| Level | Weapon Type | Caliber | Weight (g) | Range (m) | Speed (m/s) | Shots |
|---|---|---|---|---|---|---|
| B1 |  | .22LR | 2.6 ± 0.1 | 10.00 ± 0.5 | 360 ± 10 | 3 |
| B2 |  | 9mm Luger | 8.0 ± 0.1 | 5.00 ± 0.5 | 400 ± 10 | 3 |
| B3 |  | .357 Magnum | 10.2 ± 0.1 | 5.00 ± 0.5 | 430 ± 10 | 3 |
| B4 |  | .44 Magnum | 15.6 ± 0.1 | 5.00 ± 0.5 | 440 ± 10 | 3 |
| B5 |  | 5.56 x 45mm | 4.0 ± 0.1 | 10.00 ± 0.5 | 950 ± 10 | 3 |
| B6 |  | 7.62 x 51mm | 9.5 ± 0.1 | 10.00 ± 0.5 | 830 ± 10 | 3 |
| B7 |  | 7.62 x 51mm AP | 9.8 ± 0.1 | 10.00 ± 0.5 | 820 ± 10 | 3 |
The European Committee for Standardization (CEN) is a leading organization responsible for creating and maintaining technical standards across numerous sectors in Europe. Its standards cover a wide range of industries, including construction, healthcare, and defense, ensuring that products and services meet high levels of safety, quality, and reliability.
